HD34-24-31ST-059 | DEUTSCH
Connector, 31 pole, straight, HD34-24-31ST-059
Unit Price (€ / pc.)
64.8193 € *
Available: 0 pcs.
Available in 5 Days: 7 pcs.
Leadtime: 1 Week **

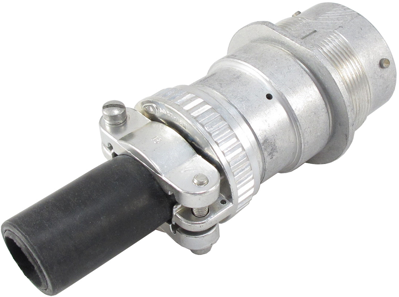

Sealed connector, HD34-24-31ST-059, DEUTSCH
The HD34-24-31ST-059 is a heavy duty, environmentally sealed, multi-pin circular connector and is designed specifically for the truck, bus, and off-highway industry. This product is constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries.
Features
- Circular, aluminum housing
- Quick connect-disconnect bayonet coupling
- Single hole bulkhead mounting
- Rear insertion/rear removal contact system
Technical specifications
| Connection | crimp connection | |
| Version | straight | |
| Contact type | socket | |
| Rated voltage | 250 V | |
| Rated current | 13 A | |
| Pin number | 31 pole | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
