110630 | Deutronic

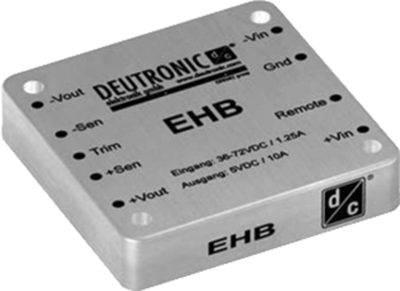

DC converters, type Deutronic EHB75-.

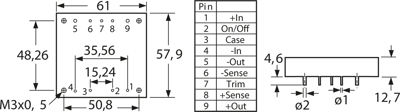

75 W DC/DC converter; with 2:1 input range, sustained short circuit-proof, electrical isolation, 5-sided metal package. Output tolerance: ±1.0 %. Residual ripple: 5.0 V 75 mVpp, 12/15 V 100 mVpp, 24 V 240 mVpp. Load fluctuation: ±0.2 %. Input fluctuation: ±0.2 %. Switching frequency: 300 kHz. Operating temperatures: –40 to +100 °C. Package: aluminum base plate, insulation material. Dimensions: W 57.9, D 61, H 12.7 mm.

Technical attributes (type, input voltage, output voltage, output current): EHB75-12-24, input 9.0 to 18 VDC, output 24 VDC, 3.13 A
