PTP901-030F-102B2 | Bourns Electronics GmbH

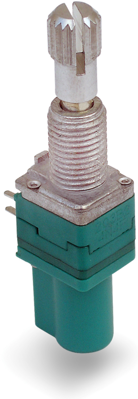

Carbon potentiometer with thrust lock shaft, 1 kΩ, 0.05 W, linear, solder pin, PTP901-030F-102B2
Unit Price (€ / pc.)
1.9873 € *
Available: 0 pcs.
Leadtime: On Request **
Carbon potentiometer, PTP901-030F-102B2, Bourns Electronics GmbH
The control panel features a shaft with push latching mechanism for easy operation and control.
Features
- Carbon element
- Center detent option
Technical specifications
| ohmic resistance | 1 kΩ | |
| Connection | solder pin | |
| Version | carbon potentiometer with thrust lock shaft | |
| Width | 9.5 mm | |
| Mechanic rotary range | 310 ° | |
| axle diameter | 6 mm | |
| Contact distance | RM 2.5 | |
| Power | 0.05 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 55 °C | |
| min. operating temperature | -10 °C | |
| Assembly | angled | |
| Track Taper | linear |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
