70 4433 246 04 | binder

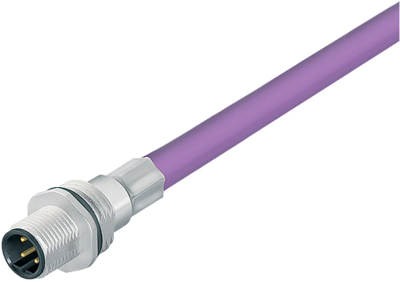

Sensor actuator cable, M12-flange plug, straight to open end, 2 pole, 0.5 m, PUR, purple, 4 A, 70 4433 246 04
Unit Price (€ / pc.)
31.8801 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
31.88 € *
Price list
Quantity
Price per unit*
1 pcs.
31.8801 €
10 pcs.
29.9642 €
25 pcs.
27.8579 €
50 pcs.
25.9182 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 70 4433 246 04, binder

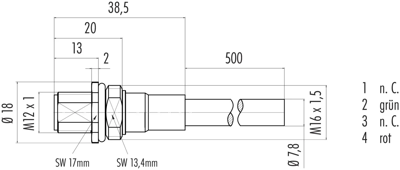

M12-B Male panel mount connector, Contacts: 2, shielded, with cable assembled, IP68, M16x1.5, Profibus, PUR, purple, 1 x 2 x 0.25 mm², 0.5 m.
Technical specifications
| Connection (1) | M12-Flanschstecker, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 2-polig | |
| Cable length | 0.5 m | |
| Colour | violett | |
| Material | PUR | |
| Degree of protection (IP) | IP68 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
