09 3391 86 04 | binder

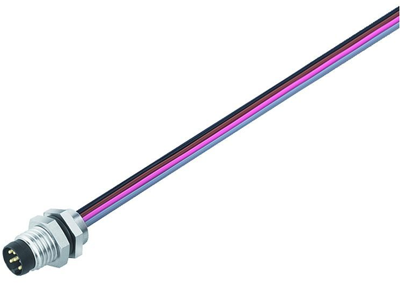

Sensor actuator cable, M8-flange plug, straight to open end, 4 pole, 0.2 m, 4 A, 09 3391 86 04

Order No.: 66P1109
EAN: 4099889699531
MPN:
09 3391 86 04
Series: 718
09 3391 86 04 binder Sensor-Actuator Cables Image 1
09 3391 86 04 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
15.4819 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
15.48 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4819 €
10 pcs.
13.6136 €
50 pcs.
12.7092 €
150 pcs.
12.1380 €
500 pcs.
11.5192 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 09-3391-86-04, BINDER

M8 Male panel mount connector, Contacts: 4, unshielded, single wires, IP67/IP69K, front mounting.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Cable length 0.2 m
LED display No
max. Voltage 60 V
Degree of protection (IP) IP67/IP69K
Rated current 4 A
Connection (2) open end
Pin number 4 pole
Connection (1) M8-flange plug, straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
