09 0702 700 05 | binder

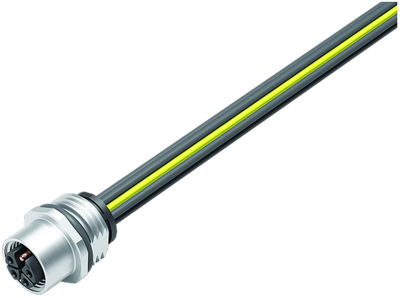

Name: Sensor actuator cable, M12-flange socket, straight to open end, 4 pole + PE, 0.2 m, CuZn, 12 A, 09 0702 700 05
Brand: binder
SKU: 70P3137
Price: 24.67 EUR
Availability: OutOfStock

Sensor actuator cable, M12-flange socket, straight to open end, 4 pole + PE, 0.2 m, CuZn, 12 A, 09 0702 700 05

Order No.: 70P3137

EAN: 4099891670818

MPN:

09 0702 700 05

Series: 824

Image may differ

Key Specification:

Connection (1) M12-flange socket, straight

Connection (2) open end

Pin number 4 pole + PE

Cable length 0.2 m

Download Datasheet Technical specifications

Unit Price (€ / pc.)

24.6687 € *

Available: 0 pcs.

Leadtime: 4 Weeks **

Add to Cart

Total Price:

24.67 € *

Price list

Quantity

Price per unit*

1 pcs.

24.6687 €

10 pcs.

23.1812 €

25 pcs.

21.7889 €

50 pcs.

20.4799 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Sensor actuator cable, 09 0702 700 05, binder

M12-K Female panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, M16x1.5.

Technical specifications

	Connection (1)	M12-flange socket, straight
	Connection (2)	open end
	Cable length	0.2 m
	LED display	No
	Material	CuZn
	max. Voltage	630 V
	Rated current	12 A
	Pin number	4 pole + PE
	Degree of protection (IP)	IP68
