09 0632 321 04 | binder
Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.2 m, 12 A, 09 0632 321 04
Unit Price (€ / pc.)
19.8016 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
19.80 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8016 €
10 pcs.
18.6116 €
50 pcs.
17.5049 €
100 pcs.
16.4577 €
*incl. VAT plus shipping costs
**Subject to prior sale

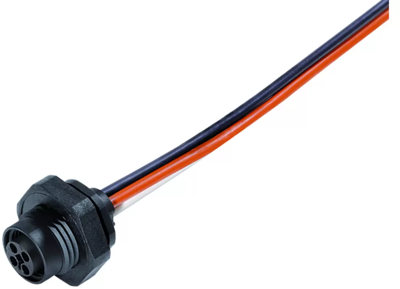

Sensor actuator cable, 09 0632 321 04, binder
M12-T Female panel mount connector, Contacts: 4, unshielded, single wires, IP68, M16x1.5, front fastened.
Technical specifications
| Connection (1) | M12-flange socket, straight | |
| Connection (2) | open end | |
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 63 V | |
| Rated current | 12 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
