09 0127 782 07 | binder

Sensor actuator cable, M16-flange plug, straight to open end, 7 pole, 0.2 m, 5 A, 09 0127 782 07

Order No.: 70P1496
EAN: 4099891661045
MPN:
09 0127 782 07
Series: 723

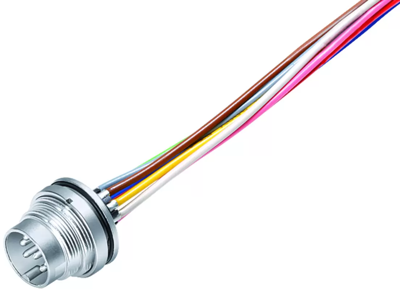

09 0127 782 07 binder Sensor-Actuator Cables Image 1
09 0127 782 07 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
20.4323 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.43 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4323 €
10 pcs.
19.1947 €
50 pcs.
18.0523 €
100 pcs.
16.9694 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor actuator cable, 09 0127 782 07, binder

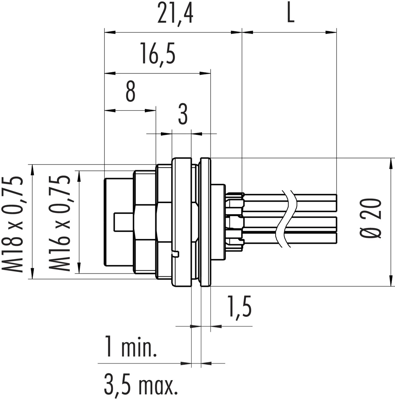

M16 IP67 Male panel mount connector, Contacts: 7, unshielded, single wires, IP67, UL, front fastened.

Technical specifications
Cable length 0.2 m
LED display No
max. Voltage 100 V
Degree of protection (IP) IP67
Rated current 5 A
Connection (2) open end
Pin number 7 pole
Connection (1) M16-flange plug, straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
