418-501-65 | apra
Die-cast aluminum enclosure, (L x W x H) 160 x 107 x 45 mm, light gray (RAL 7035), IP66, 418-501-65
Order No.: 70H4202
EAN: 4099889545456
MPN:
418-501-65
41-8501-65
Unit Price (€ / pc.)
69.9839 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
69.98 € *
Price list
Quantity
Price per unit*
1 pcs.
69.9839 €
10 pcs.
62.9867 €
*incl. VAT plus shipping costs
**Subject to prior sale

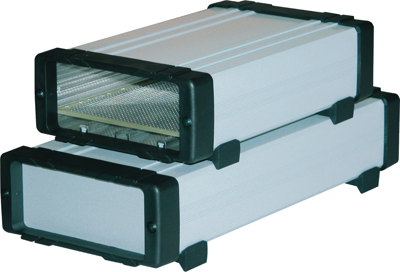

Aluminum enclosures, type Apra 418 X-dream mini.
For installing PCBs with a width of 100 mm, variable depth, stackable, good EMC properties. Made of aluminum profile which is closed on the front and rear with a black plastic frame, fire protection class to UL 94 V-0; Housing finish: light-gray varnish (RAL 7035). Degree of protection: IP 66 for configuration with closed front and rear panel and with sealing frame.
Technical attributes (type, enclosure depth, board depth): 41–8501–65, 180 mm, 160 mm, with handle

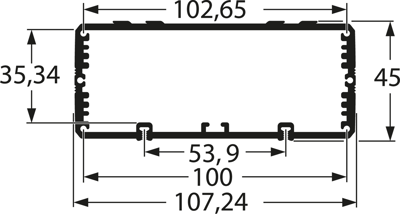

Technical specifications
| Width | 107 mm | |
| Colour | light gray | |
| Height | 45 mm | |
| Length | 160 mm | |
| Material | die-cast aluminum | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
