962825-2 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.2 to 0.51 mm², AWG 24 to 20, phosphor bronze, tin-plated, 962825-2
Unit Price (€ / pc.)
0.5117 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4046 €
50 pcs.
0.2856 €
100 pcs.
0.2142 €
700 pcs.
0.1499 €
*incl. VAT plus shipping costs
**Subject to prior sale

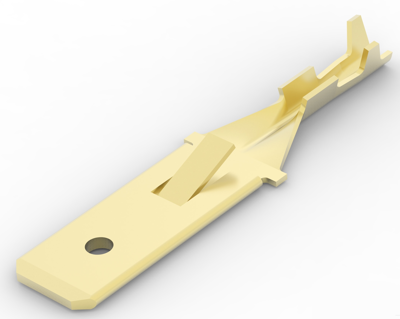

Uninsulated flat plug sleeve, 962825-2, AMP
Quick Disconnect Tab, 24-20 AWG, 0.2-0.51 mm² Wire, 6.35 mm Tab Width, Straight, Phosphor Bronze, Pre-Tin Plating, FASTIN-FASTON 250.
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 24 bis 20 | |
| Suitable for | 6,35 x 0,81 mm | |
| Isolated | No | |
| Length | 27.97 mm | |
| Cable cross-section | 0,2 bis 0,51 mm² | |
| Material | Phosphorbronze, verzinnt |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
