927892-1 | AMP
Uninsulated flat plug sleeve, 2.8 x 0.79 mm, 0.5 to 1.0 mm², AWG 20 to 17, copper-zinc alloy, tin-plated, 927892-1
Unit Price (€ / pc.)
0.4284 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.3213 €
50 pcs.
0.2237 €
100 pcs.
0.1678 €
400 pcs.
0.1178 €
*incl. VAT plus shipping costs
**Subject to prior sale

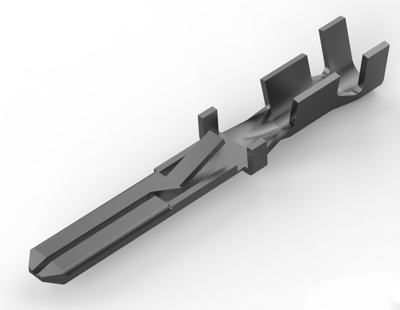

Uninsulated flat plug sleeve, 927892-1, AMP
Quick Disconnect Tab, 20-17 AWG, 0.5-1 mm² Wire, 1021-2048 CMA, 2.8 mm Tab Width, Straight, Copper Zinc Alloy, FASTIN-FASTON 110.
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 20 bis 17 | |
| Suitable for | 2,8 x 0,79 mm | |
| Isolated | No | |
| Length | 22.5 mm | |
| Cable cross-section | 0,5 bis 1,0 mm² | |
| Material | Kupferzinklegierung, verzinnt |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
