2-1586765-4 | AMP

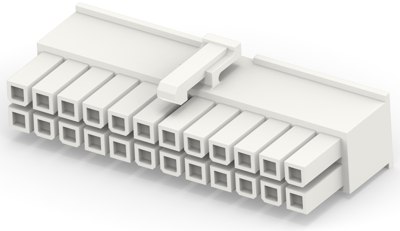

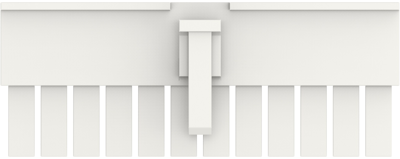

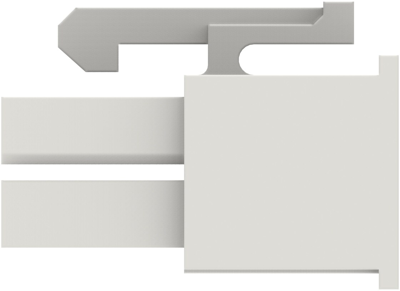

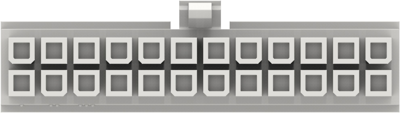

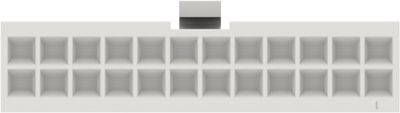

Socket header, 24 pole, pitch 4.2 mm, straight, white, 2-1586765-4
Order No.: 35P5496
EAN: 4099889939149
MPN:
2-1586765-4
Unit Price (€ / pc.)
0.8806 € *
Available: 0 pcs.
Available in 5 Days: 403 pcs.
Leadtime: 1 Week **
PCB Connection System, 2-1586765-4, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 24 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyamide
- Housing Color: white
- Number of positions: 24
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | unequipped | |
| Colour | white | |
| Contact type | socket | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 4.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
