1-188275-0 | AMP

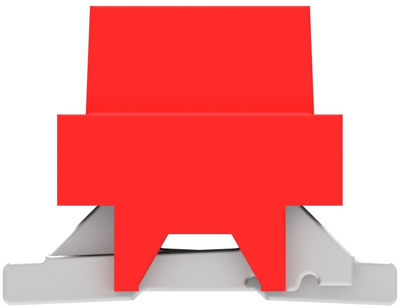

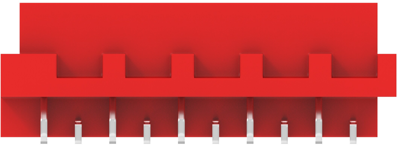

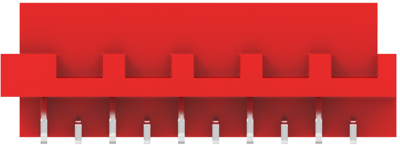

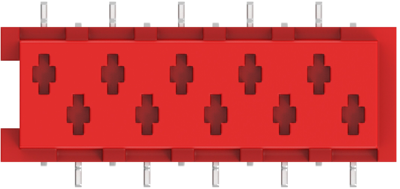

Socket header, 10 pole, pitch 1.27 mm, straight, red, 1-188275-0
Unit Price (€ / pc.)
1.2138 € *
Available: 0 pcs.
Available in 5 Days: 1,800 pcs.
Leadtime: 1 Week **
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
900 pcs.
1.2138 €
1800 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-188275-0, AMP
Board-to-Board, Printed Circuit Board, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: PA 4.6
- Housing Color: red
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 2 mm [0.059 in]
- PCB Mount Retention: Without
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | red | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Grid | 1.27 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
