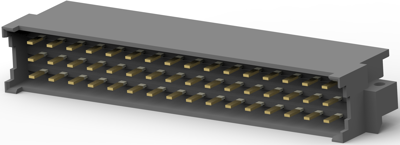

Eurocard Connector, 2-164045-1, AMP
Eurocard Connector Configuration Type: Type F, Connector & Housing Type: Plug, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Male connector, Number of Positions: 48, Number of Rows: 3, PCB Mount Orientation: Right Angle, Number of Columns: 16, Number of Signal Positions: 48, Contact Base Material: Brass, Contact Current Rating (Max): 5.5 A, Termination Method to Male connector: Through Hole - Solder, Termination Post & Tail Length: 2.9 mm, Panel Mount Feature: Without, Connector Mounting Type: Board Mount, Housing Color: Gray, Centerline (Pitch): 2.54 mm, Connector Height: 21.8 mm, Row-to-Row Spacing: 3.81 mm, Operating Temperature Range: -55 – 125 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Tray
