794227-1 | AMP

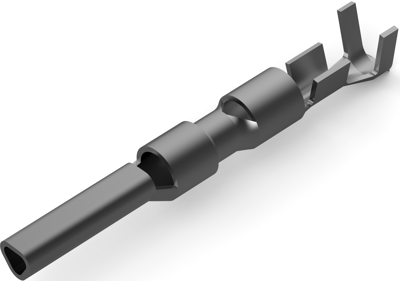

Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, 794227-1
Unit Price (€ / pc.)
0.1440 € *
Available: 0 pcs.
Available in 5 Days: 4,500 pcs.
Leadtime: 1 Week **
Total Price:
0.14 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.1440 €
4000 pcs.
0.1202 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 794227-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 10.5 A, Contact Type: Socket, Contact Retention Within Housing: Without, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 26 - 22 AWG, Wire Size: 0.12 - 0.4 mm², Accepts Wire Insulation Diameter Range: 1.19 - 1.75 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 1.19-1.75 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.12-0.4 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
