170263-2 | AMP

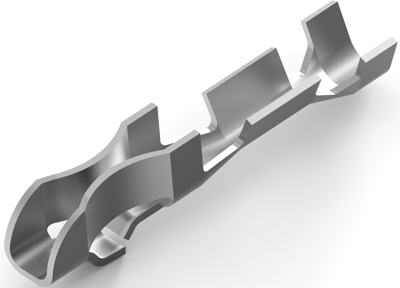

Receptacle, 0.05-0.15 mm², AWG 30-26, crimp connection, 170263-2
Order No.: 37P1162
EAN: 4099889648416
MPN:
170263-2
Unit Price (€ / pc.)
0.0357 € *
Available: 0 pcs.
Available in 5 Days: 100,000 pcs.
Leadtime: 1 Week **
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0357 €
20000 pcs.
0.0321 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 170263-2, TE Connectivity
Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2 A, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1 - 1.4 mm, Wire Size: 30 - 26 AWG, Wire Size: 0.05 -0.15 mm², Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 30-26 | |
| Insulation diameter | 1-1.4 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.05-0.15 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
