7-1377173-2 | AMP

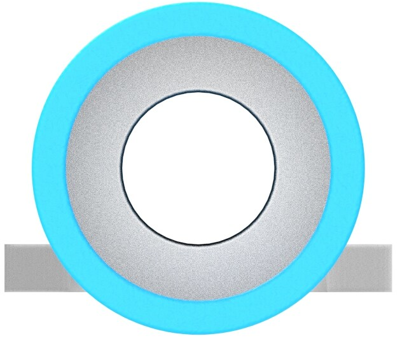

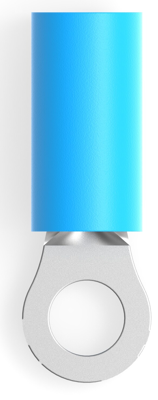

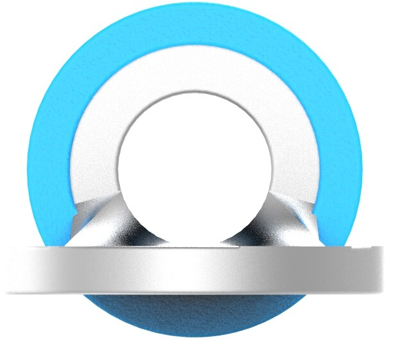

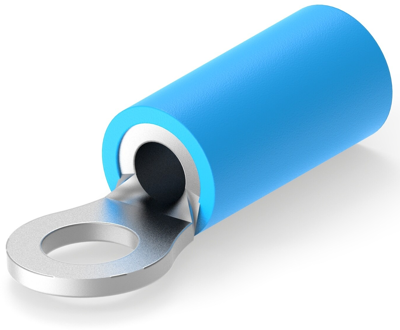

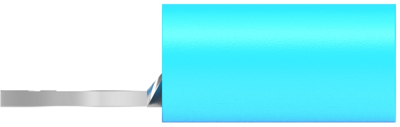

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 3.68 mm, M3.5, blue
Order No.: 39P4147
EAN: 4099889598704
MPN:
7-1377173-2
Unit Price (€ / pc.)
1.4042 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Cable lug, 7-1377173-2, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .826 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Bag
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | blue | |
| Thread size | M3.5 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 3.68 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
