60325-2 | AMP

Name: Uninsulated ring cable lug, 0.258-0.653 mm², AWG 23 to 19, 4.82 mm
Brand: AMP
SKU: 72P0106
Price: 0.09 EUR
Availability: OutOfStock

Uninsulated ring cable lug, 0.258-0.653 mm², AWG 23 to 19, 4.82 mm

Order No.: 72P0106

EAN: 4099891604868

MPN:

60325-2

Series: CJT

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 0.258-0.653 mm²

AWG cross-section AWG 23 to 19

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0904 € *

Available: 0 pcs.

Available in 5 Days: 55,000 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

0.09 € *

Price list

Quantity

Price per unit*

5000 pcs.

0.0904 €

10000 pcs.

0.0845 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

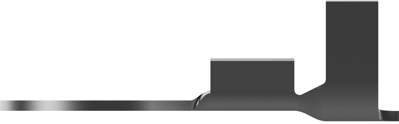

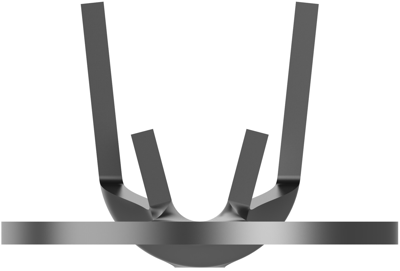

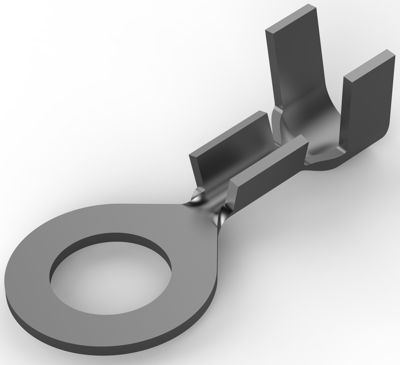

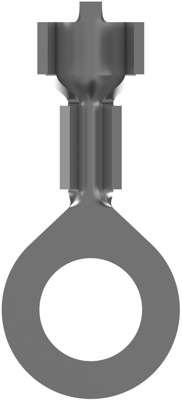

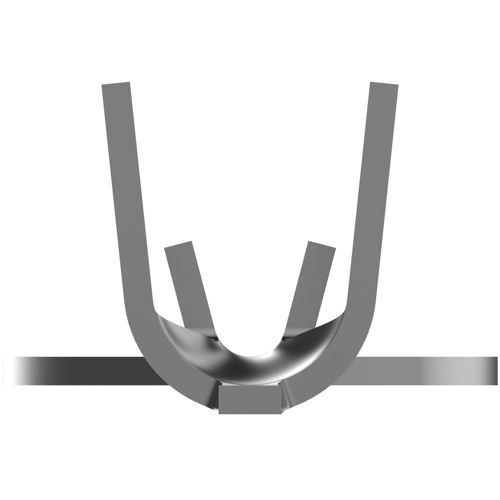

Ring cable lug, 60325-2, AMP

Ring terminal & Spade terminal, Ring tongue, 23-19 AWG Wire size, 0.258-0.653 mm² Wire size, 509-1289 CMA Wire size, Stud size #10.

Technical specifications

	Version	ring cable lug
	AWG cross-section	AWG 23 to 19
	Isolated	No
	Cable cross-section	0.258-0.653 mm²
	Hole diameter	4.82 mm
	Material	brass, tin-plated
	max. operating temperature	105 °C
	shrinkable tubing	No
