52124-1 | AMP

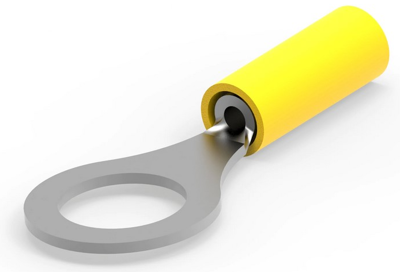

Name: Insulated ring cable lug, 0.12-0.40 mm², AWG 26 to 22, 4.82 mm, yellow
Brand: AMP
SKU: 39P3540
Price: 1.00 EUR
Availability: OutOfStock

Insulated ring cable lug, 0.12-0.40 mm², AWG 26 to 22, 4.82 mm, yellow

Order No.: 39P3540

EAN: 4099889593853

MPN:

52124-1

Series: PIDG

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 0.12-0.40 mm²

AWG cross-section AWG 26 to 22

Isolated Yes

Colour yellow

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.9996 € *

Available: 0 pcs.

Available in 5 Days: 1,237 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

1.00 € *

Price list

Quantity

Price per unit*

85 pcs.

0.9996 €

450 pcs.

0.9401 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Ring tongue terminal, 52124-1, AMP

Ring tongue terminal, Wire size: 26 - 22 AWG, Wire size: 0.12 - 0.4 mm², Wire size: 202 - 810 CMA, Stud size: 10, Body style: PIDG

Technical specifications

	Version	ring cable lug
	AWG cross-section	AWG 26 to 22
	Colour	yellow
	Material Insulation	PA
	Isolated	Yes
	Cable cross-section	0.12-0.40 mm²
	Hole diameter	4.82 mm
	Material	copper, tin-plated
	max. operating temperature	105 °C
