62002-2 | AMP

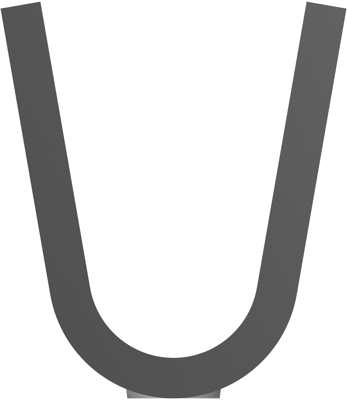

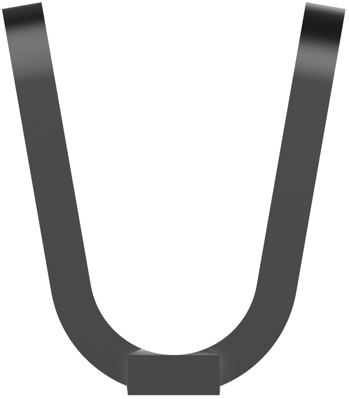

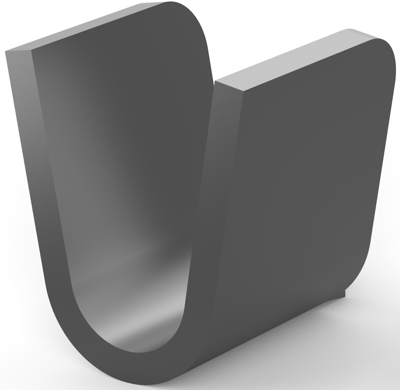

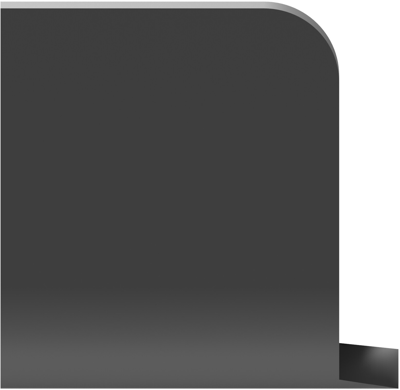

Crimp splice, uninsulated, 3.46-6.38 mm², AWG 12 to 9, black, 5.72 mm
Splice, 62002-2, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: End Feed, Splice Capacity: 3, Number of Serrations: 7, Operating Voltage: 250 V, Plating Material: Tin, Splice Material: Brass, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Crimp Width: 4.57 mm, Wire Insulation Support: Without, Wire Size: 12-9 AWG, Wire Size: 3.46-6.38 mm², Wire Size: 7000-13000 CMA, Splice Material Thickness: 6.4 mm, Splice Overall Length: 5.72 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 12500, Splice Packaging Method: Strip
| Version | Crimp splice | |
| AWG cross-section | AWG 12 to 9 | |
| Colour | black | |
| Isolated | No | |
| Length | 5.72 mm | |
| Cable cross-section | 3.46-6.38 mm² | |
| Material | brass | |
| shrinkable tubing | No |
| Country of origin | DE |
| Customs tariff number | 85369095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
