963040-1 | AMP

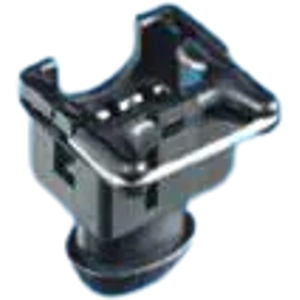

Socket, unequipped, 2 pole, straight, 1 row, blue, 963040-1
Order No.: 36P2784
EAN: 4099889898408
MPN:
963040-1
Unit Price (€ / pc.)
1.8207 € *
Available: 0 pcs.
Available in 5 Days: 1,150 pcs.
Leadtime: 1 Week **
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
50 pcs.
1.8207 €
300 pcs.
1.5113 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 963040-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: blue, Mating tab width: 1.6 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 35.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | blue | |
| Contact type | socket | |
| Rated voltage | 14 V | |
| Rated current | 20 A | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
