776309-1 | AMP
Plug, unequipped, 2 pole, straight, 2 rows, blue, 776309-1
Unit Price (€ / pc.)
2.2372 € *
Available: 0 pcs.
Available in 5 Days: 129 pcs.
Leadtime: 1 Week **

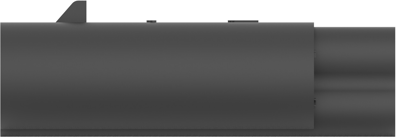

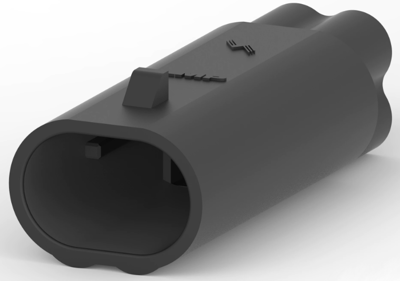

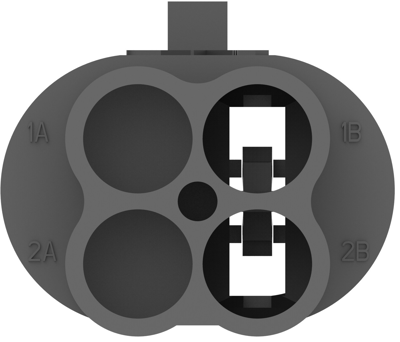

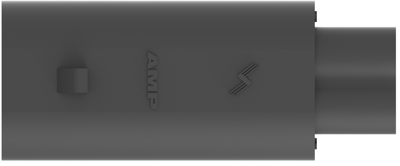

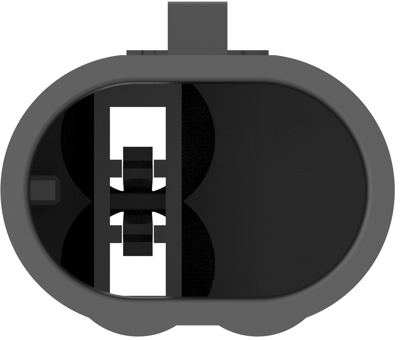

Plug housing, 776309-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: blue, Mating pin diameter: 1.5 mm, Mating alignment type: polarized, Row-to-row spacing: 6.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | blue | |
| Contact type | plug | |
| Rated voltage | 12 V | |
| Pin number | 2 pole | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
