1582420000 | Weidmüller
Receptacle, 1.5 mm², AWG 18-16, crimp connection, gold-plated, 1582420000
Unit Price (€ / pc.)
0.9758 € *
Standard delivery time from the manufacturer is: 6 Weeks

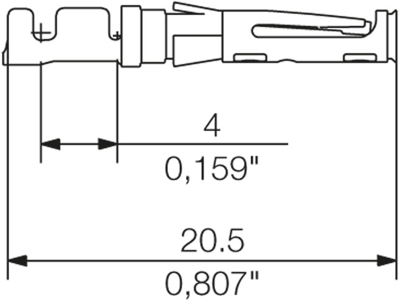

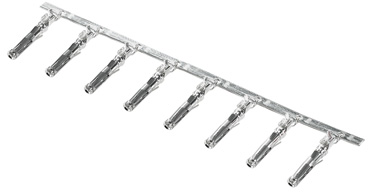

Socket contact, 1582420000, Weidmüller
The 1582420000 is a socket contact. This product enables custom adaptations to the specific requirements of your applications.
Features
- Safe centring of the contacts using the three-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18-16 | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Version | receptacle | |
| Contact material | brass | |
| Cable cross-section | 1.5 mm² | |
| Insulation diameter | 2-3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
