83164156 | murrplastik

Protective hose, inside Ø 9.9 mm, outside Ø 13 mm, BR 20 mm, PA, black, 83164156

Order No.: 47P0389
EAN: 4045005292759
MPN:
83164156
EWL-PAB M12/P09 SCHWARZ
Series: EWL-PAB

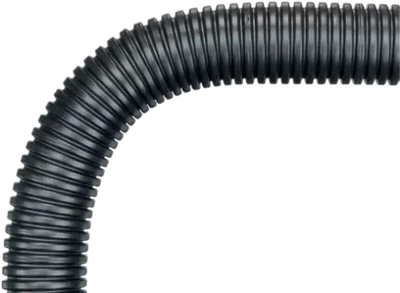

83164156 murrplastik Protective Tubes Image 1

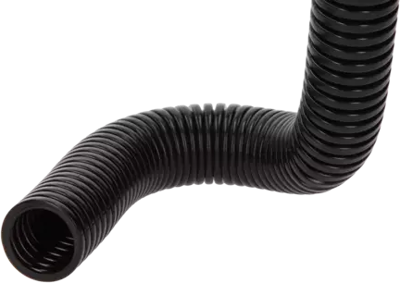

83164156 murrplastik Protective Tubes Image 2
83164156 murrplastik Protective Tubes Image 3
Image may differ
Unit Price (€ / mtr.)
1.0115 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
101.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.0115 €

Cable protection conduit, 83164156, murrplastik

The cable protection conduit is made of specially modified polyamide 6. The material is halogen-, phosphor-, and cadmium-free. The affordable EWL-PAB cable protection conduit is characterised by its excellent self-extinguishing properties and high crush and impact resistance.

Applications

  • Plant engineering
  • Mechanical engineering
  • Vehicle engineering
Technical specifications
Filter Property Value
max. operating temperature 120 °C
min. operating temperature -45 °C
Colour black
Outer diameter 13 mm
Material PA
Bending radius 20 mm
Inner diameter 9.9 mm
Nominal width 10 mm
Logistics
Property Value
Customs tariff number 39173200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
