83164025 | murrplastik

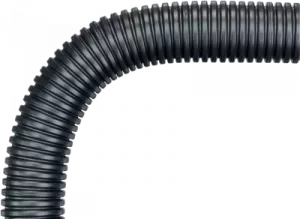

Protective hose, inside Ø 23 mm, outside Ø 28.3 mm, BR 50 mm, PA, gray, 83164025
Unit Price (€ / mtr.)
3.5819 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protective conduit, 83164025, murrplastik
The EWL-PA cable protection conduit is made of specially modified polyamide 6. The material is halogen, phosphor, and cadmium-free. The affordable EWL-PA cable protection conduit is characterized by its good crush and impact resistance.
Applications
- Plant engineering
- Mechanical engineering
- Plant engineering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Outer diameter | 28.3 mm | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Bending radius | 50 mm | |
| Material | PA | |
| Nominal width | 23 mm | |
| Inner diameter | 23 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
