SMAJ40CA | Littelfuse
SMD TVS diode, bidirectional, 400 W, 40 V, DO-214AC, Littelfuse SMAJ40CA
Unit Price (€ / pc.)
0.2142 € *
Available in 4 Days: 5,000 pcs. - if ordered today

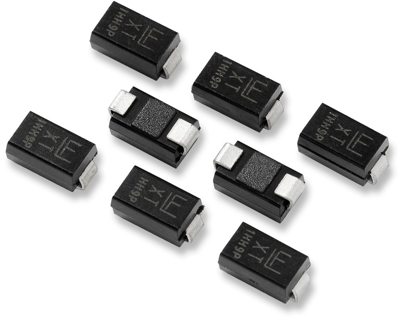

TVS Diode, SMAJ40CA, Littelfuse
The SMAJ40CA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 3.3 W | |
| Version | bidirectional | |
| min. operating temperature | -65 °C | |
| Rated blocking voltage | 40 V | |
| max. operating temperature | 150 °C | |
| Pulse power loss | 400 W | |
| Breakdown voltage | 44.4 V | |
| Enclosure | DO-214AC | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
