0031419 | LAPP
PVC data cable, 8-wire, 0.75 mm², AWG 19, black, 0031419
Order No.: 33P2909
EAN: 4064728756942
MPN:
0031419
UNITRONIC FD Li2YCY (TP) A BE 8X2X0,75
Series: UNITRONIC FD Li2YCY (TP) A BE
Unit Price (€ / mtr.)
20.9678 € *
Standard delivery time from the manufacturer is: On Request

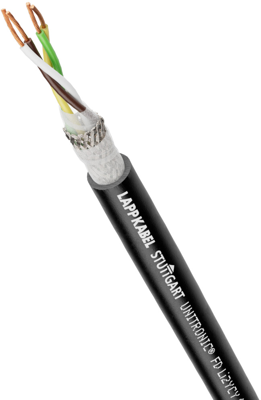

Shielded data cable, 0031419, LAPP
The 0031419 is a high flexible, screened and twisted pair data cable with an outer sheath of PVC. The cable with low capacitance is designed especially for use in power chains, automatic manipulators, in permanently moved machine parts.
Features
- Mechanical and plant engineering
- Suitable for outdoor use
- Flame-retardant
- Interference signals
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 14.7 mm | |
| Version | data cable | |
| Core insulation material | PE | |
| Halogen free | No | |
| Cable cross-section | 0.75 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Colour | black | |
| Material | PVC | |
| Number of cores | 8 | |
| AWG cross-section | AWG 19 | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
