4533066 | LAPP

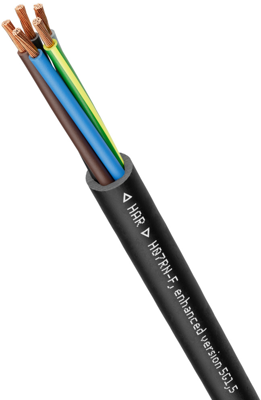

Rubber connection cable H07RN-F, erweiterte Version 4 x 2.5 mm², unshielded, black, 4533066
Order No.: 33P3266
EAN: 4044776709374
MPN:
4533066
H07RN-F, ENHANCED VERSION 4X2,5
Series: H07RN-F, erweiterte Version
Unit Price (€ / mtr.)
5.1765 € *
Standard delivery time from the manufacturer is: On Request
Power and control cable, 4533066, LAPP
The 4533066 designed for connecting equipment for heavy stress and connecting industrial and agricultural machines where cables underlie medium mechanical stress. and connecting industrial and agricultural machines where cables underlie medium mechanical stress. (e.g. machine tools, hot plates, lamps, electrical tools). In compliance with recommended application acc to. DIN EN 50565-2, H07RN-F, enhanced version is suitable for use in dry, damp or wet rooms as well as outdoors. Fixed installation such as on plaster in provisory buildings and barracks are allowed. Continuous operational movements, restricted guidance, usage of these cables in moving cable carriers or on motor drum guidance or under a strain of more than 15 N/mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Protective conductor available | No | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Rated voltage | 750 V | |
| Temperature range (active) | -40 °C to 90 °C | |
| Material | rubber | |
| Core insulation material | rubber | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Drag chain suitable | No | |
| Outer diameter | 15.5 mm | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Number of cores | 4 | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
