092227001 | Kabeltronik

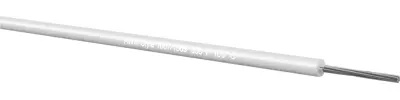

PVC-switching strand, UL-Style 1007/1569, 0.34 mm², AWG 22, 7 x 0.25 mm, white, outer Ø 1.65 mm, 092227001
Unit Price (€ / mtr.)
0.3808 € *
Available in 7 Days: 3,820 mtr. - if ordered today
PVC stranded wire, 092227001, Kabeltronik
The 092227001 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 1.65 mm | |
| Test voltage | 3 kV | |
| Rated voltage | 300 V | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Cable cross-section | 0.34 mm² | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Cable structure | 7 x 0.25 mm | |
| Colour | white | |
| Product type | switching strand | |
| AWG cross-section | AWG 22 | |
| Temperature range (active) | -5 °C to 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
