23705 | HELUKABEL

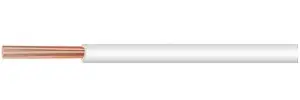

Silicone-switching strand, highly flexible, halogen free, SiF, 2.5 mm², white, outer Ø 3.4 mm, 23705
Unit Price (€ / mtr.)
1.3923 € *
Available: 19 mtr.
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 mtr.
1.3923 €
10 mtr.
1.2138 €
100 mtr.
1.0591 €
500 mtr.
0.9639 €
1000 mtr.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicon single core, 23705, HELUKABEL
Special single core for use in high and low temperature areas. This is used mainly in the steel producing industries, in aviation industries as well as in ship building.
Features
- Heat-resistance
- Oil-resistant
- Halogen-free
- Weather-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2 kV | |
| Product type | switching strand | |
| Temperature range (active) | -25 °C to 180 °C | |
| Standard number | VDE 0250 | |
| Core insulation material | silicone | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Colour | white | |
| Outer diameter | 3.4 mm | |
| Version | highly flexible | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
