16565 | HELUKABEL
PVC control line F-CY-OZ (LiY-CY) 10 x 0.75 mm², AWG 19, shielded, gray, 16565
Unit Price (€ / mtr.)
3.8437 € *
Standard delivery time from the manufacturer is: 6 Weeks

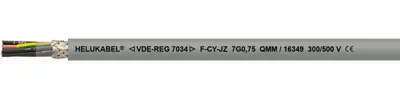

Connection cable, 16565, HELUKABEL
The 16565 is a connection cable for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not outside; to be used as control and connecting cable in control and regulation technology, in the tool and machine building industry, in computer systems, as well as a signal cable in the electronic industry. A stabilizing foil separator between wire bound and braid reduces the outer diameter essentially and allows for smaller bending radius as well as lower weights. The disturbance free transmission of signals and impulses is ensured due to the high degree of screening.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 19 | |
| Number of cores | 10 | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Product type | control line | |
| Material | PVC | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Temperature range (active) | -10 °C to 80 °C | |
| Cable material | copper, bright | |
| Rated voltage | 500 V | |
| Core insulation material | PVC | |
| Protective conductor available | No | |
| Rated voltage U0 | 300 V | |
| Colour | gray | |
| Cable cross-section | 0.75 mm² | |
| Outer diameter | 10.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
