13109 | HELUKABEL

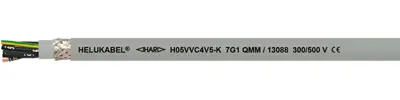

PVC connection cable H05VVC4V5-K 3 G 2.5 mm², AWG 14, shielded, gray, 13109

Order No.: 93F6617
EAN: 4060892029035
MPN:
13109
Series: H05VVC4V5-K
13109 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
4.2483 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
424.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
4.2483 €

Control cable, 13109, HELUKABEL

The 13109 is a PVC control cable Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use as a connection cable in machine and machine tool construction, assembly lines, conveyers and production lines. Even various chemical compounds cannot harm the cable. As a cable suitable for damp rooms, it is also preferred for the operation of machines in breweries, bottling plants and car washes. For interference-free data signal transmission in measurement and control technology in case electromagnetic screening is required. The cable may engage in flexible movement after installation, provided the cable is not mechanically overloaded during the movements. This shielded cable is not designed for permanent bending stresses.

Technical specifications
Filter Property Value
Core insulation material PVC
Rated voltage U0 300 V
Conductor category CL.5 = fine stranded
Rated voltage 500 V
Cable cross-section 2.5 mm²
Cable material copper, bright
Shielding shielded
Material PVC
Drag chain suitable No
Number of cores 3
Version connection line
Protective conductor available Yes
Temperature range (unmoved) -40 °C to 70 °C
Outer diameter 14 mm
AWG cross-section AWG 14
Colour gray
Temperature range (active) -5 °C to 70 °C
Test voltage 2 kV
Halogen free No
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
