12005 | HELUKABEL
PVC control line SY-JZ 7 G 0.5 mm², AWG 20, shielded, transparent, 12005
Unit Price (€ / mtr.)
2.7965 € *
Standard delivery time from the manufacturer is: 6 Weeks

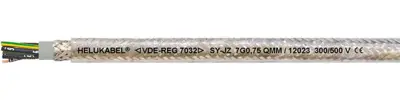

Control cable, 12005, HELUKABEL
This is used as a connection and control cable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use in machine tools, plant construction and data technology. Due to the dense braiding, the cable is well protected against mechanical damage. The galvanisation of the braid prevents corrosion and guarantees improved solderability of the braid.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| AWG cross-section | AWG 20 | |
| Shielding | shielded | |
| Cable material | copper, bright | |
| Colour | transparent | |
| Drag chain suitable | No | |
| Cable cross-section | 0.5 mm² | |
| Temperature range (active) | -15 °C to 80 °C | |
| Core colour sequence | black | |
| Rated voltage U0 | 300 V | |
| Material | PVC | |
| Halogen free | No | |
| Rated voltage | 500 V | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 4 kV | |
| Outer diameter | 9.5 mm | |
| Number of cores | 7 | |
| Product type | control line | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
