09063486951 | Harting

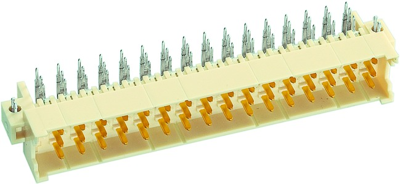

Male connector, type F, 48 pole, z-b-d, pitch 5.08 mm, solder pin, angled, 09063486951
Unit Price (€ / pc.)
7.1519 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 09063486951, Harting
Male connector, Reflow soldering termination (THR), Rated current: 6 A, Contacts: 48, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Shroud coding, Coding with loss of contacts, D20 coding, PCB fixing: With fixing flange, With snap-in clip, Thermoplastic resin, glass-fibre filled, Beige
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Contact row assignment | z-b-d | |
| Contact type | pin | |
| Connection | solder pin | |
| Performance level | 2 | |
| Orientation | angled | |
| Pin number | 48 pole | |
| Design | F | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
