111110251100 | Eberle

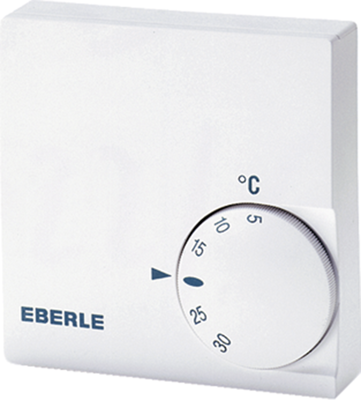

Thermostat, 230 VAC, 5 to 30 °C, white, 111110251100
Order No.: 06N8002
EAN: 4017254084621
MPN:
111110251100
RTR-E 6124 230V
Unit Price (€ / pc.)
44.0895 € *
Standard delivery time from the manufacturer is: 1 Week
Room thermostats, type Eberle RTR-E.
With thermal feedback; Mounting: surface, directly onto the flush outlet, or on DIN rail. Operating voltage: 230 VAC. Switching current: AC 10 mA to 10 (4) A, DC 100 W. Temperature range: +5.0 to +30 °C. Contacts: 1 NC. Degree of protection: IP 30 safety insulation. Dimensions: 75 x 75 x 25.5 mm.
Type RTR-E 6124.
With 5.0 K temperature derating via external timer.
Type: 111 1102 51 100, room thermostat
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 30 °C | |
| min. operating temperature | 5 °C | |
| Colour | white | |
| Assembly | wall mounting | |
| Voltage | 230 VAC | |
| Degree of protection (IP) | IP30 | |
| Version | room temperature controller |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90321080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
