DEM 480272E3 TMH-PW-N | Display Elektronik
TFT module, 4.3"/10.9 cm, 480 x 272, DEM 480272E3 TMH-PW-N
Order No.: 73S0358
EAN: 4099891979232
MPN:
DEM 480272E3 TMH-PW-N
Unit Price (€ / pc.)
17.8262 € *
Standard delivery time from the manufacturer is: 1 Week

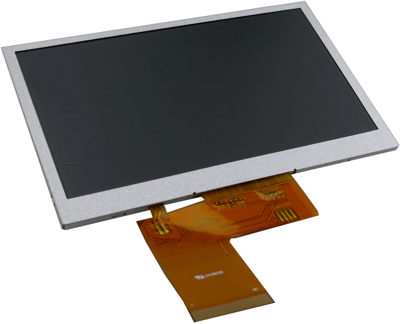

TFT Module, DEM 480272E3 TMH-PW-N, Display Elektronik
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 480 x 272 | |
| Viewing area (width) | 53.86 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Technology | TN - transmissive | |
| Shell size | 105.4 x 67.15 x 2.9 mm | |
| Product type | TFT module | |
| Viewing range (height) | 95.04 mm | |
| screen diagonal | 4.3"/10.9 cm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
