HR30-6P-6S(71) | HIROSE

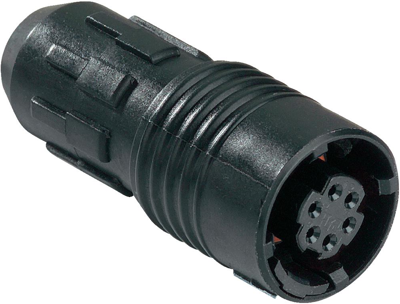

Kupplung, 6-polig, Lötkelch, Push-Pull, gerade, HR30-6P-6S(71)
Rundsteckverbinder mit Push-pull-Verriegelung IP 67 Typ Hirose HR30.
Mit Lötanschluss; Bemessungsspannung: 100 VAC/140 VDC, Bemessungsstrom: 2,0 A, Kontakte: vergoldet, Kabeldurchlass: 4,2 bis 5,0 mm, Isolationsspannung: 300 VAC/min, Isolationswiderstand: 1,0 GOhm, Kontaktwiderstand: max.15 mOhm, Betriebstemperatur: - 25 bis +85 °C.
Buchsen Typ HR30.
Technische Merkmale (Typ, Polzahl, Maße): HR30 - 6P - 6S(71), 6 - polig, A 29,8, B 12,6 mm
Technische Daten
| Filter | Merkmal | Wert |
|---|---|---|
| Ausführung | Kupplung | |
| Polzahl | 6-polig | |
| Orientierung | gerade | |
| Kontaktanschluss | Lötkelch | |
| Verriegelung | Push-Pull | |
| Kabeldurchmesser | 4,2 bis 5 mm | |
| Montage | Kabelmontage | |
| Kontaktoberfläche | vergoldet | |
| Gehäusematerial | Kunststoff |
Download
Logistik
| Merkmal | Wert |
|---|---|
| Zolltarifnummer | 85366990 |
| Ursprungsland | CN |
Compliance
| Merkmal | Wert |
|---|---|
| Stand der RoHS-Richtlinie | 31.03.15 |
| SVHC frei | Ja |
| RoHS konform | Ja |
