TRI 3-0523 | TRACO POWER
DC/DC converter, 4.5-9 VDC, 3.5 W, 2 outputs, ±15 VDC, 84 % efficiency, TRI 3-0523

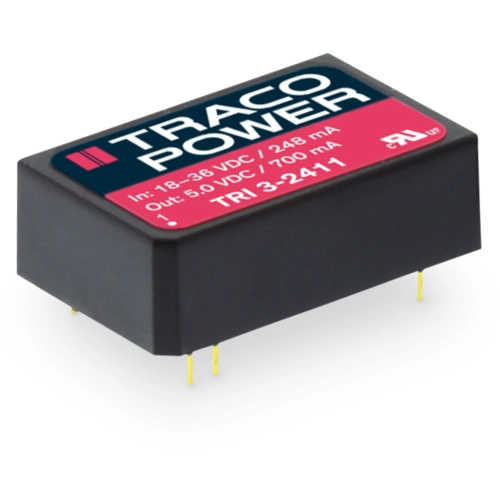

DC/DC converters, Traco TRI 3-0523
The new TRI 3 is a high isolation, regulated 3.5 Watt DC/DC converter series which comes in a compact DIP-24 package. The core characteristic of the TRI 3 series is a sophisticated reinforced isolation system which is able to withstand high test voltages (9000 VDC for 1s and 5000 VAC for 60s) and working voltages (1000 VACrms). Complementing this isolation characteristic is a high Common Mode Transient Immunity of 15 kV/µs. The new design allows to fully integrate an EN 55032 class A filter and greatly reduces the no-load power consumption. High efficiencies up to 87% allow safe operation from –40°C to +90°C without derating. All models have a wide 2:1 input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the TRI 3 series is the perfect choice for many demanding applications in the industrial, transportation and instrumentation sectors.
| Number of outputs | 2 | |
| Output voltage DC | ±15 VDC | |
| Output current | 115 mA | |
| Design | DIP24 | |
| Width | 20.3 mm | |
| Input voltage AC | 4.5-9 VDC | |
| Height | 12 mm | |
| Isolation voltage | 5 kV | |
| Length | 31.8 mm | |
| Power | 3.5 W | |
| efficiency | 84 % |
| Country of origin | TW |
| Customs tariff number | 85044095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
