171 10 150 | Thora
Rotational damper 15 N/cm ±2.0, no FW, 171 10 150
Order No.: 89B5065
EAN: 4099889505382
MPN:
171 10 150
RD-DA 15Ncm kein Freilauf
Unit Price (€ / pc.)
5.5335 € *
Available: 0 pcs.
Leadtime: On Request **

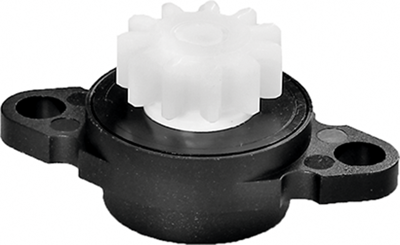

Rotational dampers, type Thora RD-DA.
With pinion, module 1.25 with 11 teeth, for screw mounting; Housing/pinion material: PA66 GF13/POM. Operating temperatures: –30 to +90 °C. Useful life: 15,000 cycles.
Technical attributes (type, torque, free wheeling (FW)): 171 10 150, 15 N/cm ±2.0, no FW

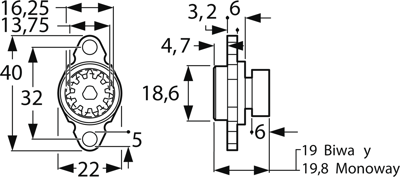

Technical specifications
| Version | rotational damper | |
| Outer diameter | 40 mm | |
| Type of mounting | mounting flange | |
| Torque | 15 Ncm | |
| Colour | pink | |
| For grommet type | RD-DA-150 | |
| Height | 19 mm | |
| Inner diameter | 13.75 mm | |
| Lifetime | 15.000 cycles | |
| Hole diameter | 5 mm | |
| Material | housing PA66 GF13, pinion POM | |
| max. operating temperature | 90 °C | |
| min. operating temperature | -30 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
