4AM2342-4TN00-0EB0 | Siemens

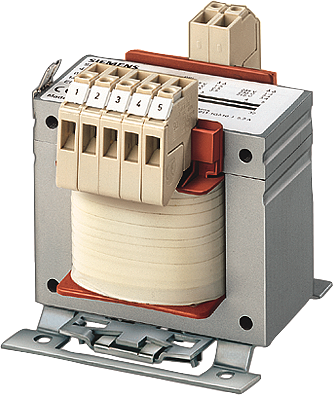

Power transformer, 25 VA, 230 V/218 V, 74 %, 4AM2342-4TN00-0EB0
Order No.: 80P9459
EAN: 4001869908458
MPN:
4AM2342-4TN00-0EB0
4AM23424TN000EB0
Unit Price (€ / pc.)
89.7022 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Transformer Sitas- Phases: 1- PN/PN(S6)(KVA): 0,025 /0- UPRI(V): 230+/-5%- USEC(V): 24- ISEC(A): 1,04- F(HZ): 50..60- VECTOR GR./Shield WNG.: II0 /0- TA/ISOKL: 40 /B- IP00- Type Of Terminals: Screw/tab Connection- Installation: Mounting Rails- EN 61558-2-6 UL/CSA-Recognized-safety isolating transformer. The 4AM transformers unite all properties of single-phase safety, isolating, control and line transformers. With these properties, they can effortlessly handle any application. The control transformers are also characterized by their short-time rating.
Technical specifications
| Output power | 25 W | |
| Width | 62 mm | |
| Height | 79 mm | |
| Length | 78 mm | |
| Primary voltage | 242 V | |
| Secondary voltage (1) | 230 V | |
| Secondary voltage (2) | 218 V | |
| efficiency | 74 % |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
