1.20.122.022/0000 | RAFI

Name: Switch element, 2 Form A (N/O), groping, 240 V, 1.5 A, 1.20.122.022/0000
Brand: RAFI
SKU: 12G6306
Price: 10.40 EUR
Availability: InStock

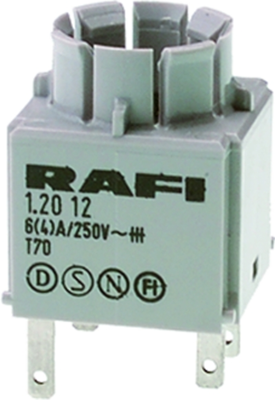

Switch element, 2 Form A (N/O), groping, 240 V, 1.5 A, 1.20.122.022/0000

Order No.: 12G6306

EAN: 4099889255577

MPN:

1.20.122.022/0000

Series: RAFIX 16

Image may differ

Key Specification:

Version switch element

Latching switching function 2 Form A (N/O)

Contact function groping

Connection plug-in connection

Contact material silver

Show 18 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.4006 € *

Available: 40 pcs.

Leadtime: 3 Weeks **

Total Price:

10.40 € *

Price list

Quantity

Price per unit*

1 pcs.

10.4006 €

10 pcs.

9.1511 €

50 pcs.

8.5323 €

150 pcs.

8.1515 €

500 pcs.

7.7350 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Standard switching element, 1.20.122.022/0000, RAFI

RAFIX 16 standard switching element is designed for actuators with one switching direction (pushbuttons, mushroom pushbuttons and toggle switches).

The switching element is available with a momentary contact or latching function, so that latching pushbuttons can also be achieved.

Features

Optionally with latching function for visible switch function
Mounting by snapping onto the actuator
Disassembly by turning and pulling off

Applications

Measurement-control-regulation
Electrical engineering
Mechanical and system engineering
Industrial robots

Technical specifications

	Connection	plug-in connection
	Version	switch element
	can be illuminated	Yes
	Contact function	groping
	Contact material	silver
	Rated voltage	240 V
	Rated current	1.5 A
	Latching switching function	2 Form A (N/O)

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
