P 3725 | PeakTech

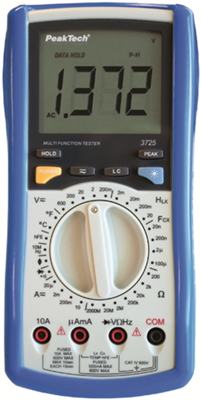

Digital multimeter P 3725, 10 A(DC), 10 A(AC), 600 VDC, 750 VAC, 20 nF to 100 µF, CAT III 600 V
Digital multifunctional testers, type PeakTech 3725.
Features: transistor test, diode and continuity test function with buzzer, TTL logic test, MAX/DATA HOLD function, manual range selection, Auto-Off, polarity/overload and battery status indication. LCD: 3 1/2 digits, 53 x 62 mm, backlit. DC voltage: 200 mV, 2.0/20/200/600 V, resolution/tolerance 100 µV/±0.5%. AC voltage: 200 mV, 2.0/20/200/600 V, resolution/tolerance 100 µV/±0.8%. DC current: 20 µA, 2.0/200 mA, 10 A, resolution/tolerance 10 nA/±0.8%. AC current: 20 µA, 2.0/200 mA, 10 A, resolution/tolerance 10 nA/±1.0 %. Resistance: 200 ohm, 2.0/20/200 kohm, 2.0/20/2000 Mohm, resolution/tolerance 0.1 ohm/±0.8%. Capacitance: 20/200 nF, 2.0/100 µF, resolution/tolerance 10 pF/±2.5%. Inductance: 2.0/20/200 H, 20 H, resolution/tolerance 1.0 µH/±2.0 %. Frequency: 2.0/20/200 kHz, 2.0/10 MHz, resolution/tolerance 1.0 Hz/±0.1%. Temperature: –40 to +1000 °C, ±1.0 %. Operating voltage: 9.0 V battery. Dimensions (W x H x D): 90 x 195 x 40 mm. Weight: 600 g. Safety: IEC-1010-1, CAT III 600 V. Supplied with Test leads, test clips, multifunctional adapter, thermocouple, 9.0 V battery and operating instructions.
Type: 3725, digital multifunctional tester
| Display Digits | 2000 | |
| Version | digital multimeter | |
| TRMS possible | No | |
| Capacity range | 20 nF to 100 µF | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 2 Ω | |
| max. voltage measuring range (AC) | 750 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT III 600 V |
| Country of origin | CN |
| Customs tariff number | 90303100 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
