DLA100B800LB-TUB | Littelfuse

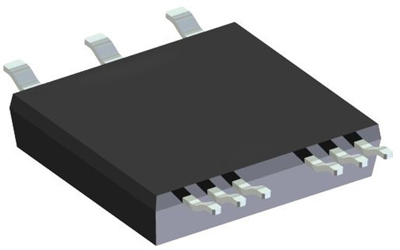

Littelfuse bridge rectifier, 800 V (RRM), 100 A, SMPD-B, DLA100B800LB-TUB
Order No.: 74P1216
EAN: 4099891780814
MPN:
DLA100B800LB-TUB
Unit Price (€ / pc.)
18.802 € *
Available: 0 pcs.
Leadtime: 54 Weeks **
Rectifier bridge, DLA100B800LB-TUB, Littelfuse
Rectifier bridge with an isolation voltage of 3000 V, very low leakage current and a very low forward voltage drop, DCB ceramic on the backside, and reduced weight.
Features
- Planar passivated chip
- Improved thermal behavior
- Industry convenient outline
- RoHS compliant
- Epoxy meets UL 94 V-0
- Soldering pins for PCB mounting
- Advanced power cycling
Applications
- Diode bridge for main rectification
Technical specifications
| Version | 1-phase | |
| Enclosure | SMPD-B | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Rated current | 100 A | |
| Voltage V RRM (peak reverse voltage) | 800 V |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
