15340023 | LAPP

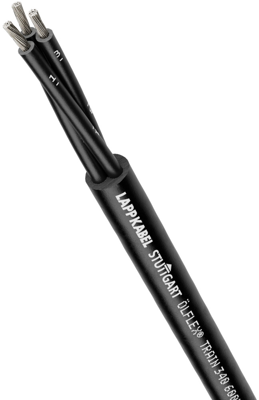

Polymer compound train cable ÖLFLEX TRAIN 340 600V 2 x 50 mm², unshielded, black
Order No.: 33P2457
EAN: 4044777254613
MPN:
15340023
ÖLFLEX TRAIN 340 600V 2X50
Series: ÖLFLEX TRAIN 340 600V
Unit Price (€ / mtr.)
65.093 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Multi-core cable, 15340023, LAPP
The 15340023 is a multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | electron beam crosslinked polymer compound | |
| Core colour sequence | black | |
| Number of cores | 2 | |
| Version | train cable | |
| Outer diameter | 26.2 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 50 mm² | |
| Material | polymer compound | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 3.5 kV | |
| Shielding | unshielded | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C to 90 °C | |
| Temperature range (unmoved) | -45 °C to 120 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
