09200162812 | Harting

Name: Socket contact insert, 16A, 16 pole, equipped, screw connection, with PE contact, 09200162812
Brand: Harting
SKU: 42F814
Price: 30.82 EUR
Availability: InStock

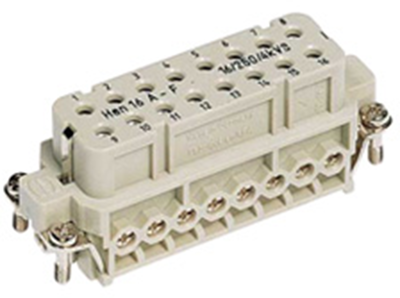

Socket contact insert, 16A, 16 pole, equipped, screw connection, with PE contact, 09200162812

Order No.: 42F814

EAN: 4099889769883

MPN:

09200162812

09 20 016 2812

Series: Han A

Image may differ

Key Specification:

Version socket insert

Shell size 16A

Additional parts equipped

Contact connection screw connection

Pin number 16 pole

Ordering Information:

Contacts are part of the delivery content

Download Datasheet Technical specifications

Unit Price (€ / pc.)

30.8210 € *

Available: 1 pcs.

Next delivery: 1 pcs. on 2024-06-13

Leadtime: 2 Weeks **

Total Price:

30.82 € *

Price list

Quantity

Price per unit*

1 pcs.

30.8210 €

5 pcs.

28.9765 €

15 pcs.

27.8579 €

50 pcs.

26.6322 €

150 pcs.

25.5136 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09200162812, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 16 A, Contacts: 16, Conductor cross-section: 0.75 - 2.5 mm², Copper alloy, Silver plated

Technical specifications

	Version	socket insert
	Additional parts	equipped
	Shell size	16A
	Contact connection	screw connection
	PE contact	Yes
	Pin number	16 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
