SZ50050035054 | FTcap

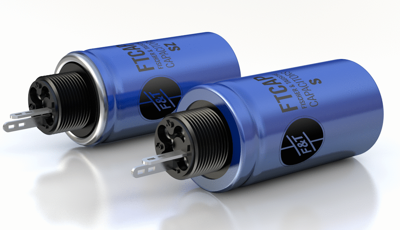

Electrolytic capacitor, 500 V (DC), -10/+30 %, can, Ø 35 mm

Order No.: 14D4663
EAN: 4099891765910
MPN:
SZ50050035054
1022746
Series: SZ
FTcap
default L
Image may differ
Unit Price (€ / pc.)
11.2336 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
11.23 € *
Price list
Quantity
Price per unit*
200 pcs.
11.2336 €
1000 pcs.
10.9004 €
3000 pcs.
10.3292 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, 1022746, FTcap

The 1022746 electrolytic capacitor features high mechanical stability and central mounting, with all contacts welded.

Features

  • Soldering lug terminals
  • RoHS compliant
  • REACH compliant

Applications

  • Industrial
  • Tube amplifier
  • SMPS
Technical specifications
Connection soldering lug
Version polar
Design can
diameter 35 mm
Length 54 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Rated voltage (DC) 500 V
Tolerance -10/+30 %
Logistics
Country of origin DE
Customs tariff number 85322200
Original Packaging Carton with 200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Length
Rated voltage (DC)
Ripple current
Design
Version
Tolerance
Connection
min. operating temperature
max. operating temperature
1 item in 4 variations
