2329909-1 | TE Connectivity

Name: Tab, 0.13-0.3 mm², AWG 26-22, crimp connection, 2329909-1
Brand: TE Connectivity
SKU: 71P6636
Price: 0.05 EUR
Availability: OutOfStock

Tab, 0.13-0.3 mm², AWG 26-22, crimp connection, 2329909-1

Order No.: 71P6636

EAN: 4099889984897

MPN:

2329909-1

Series: Power Versa-Lock 5.0

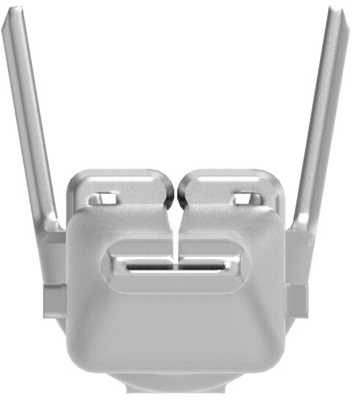

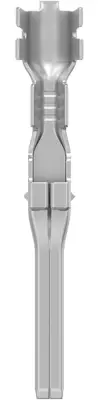

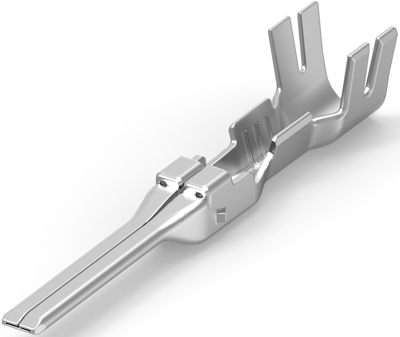

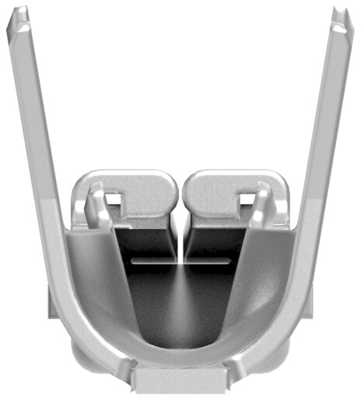

Image may differ

Key Specification:

Version tab

Cable cross-section 0.13-0.3 mm²

AWG cross-section AWG 26-22

Contact connection crimp connection

Contact material brass

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0524 € *

Available: 0 pcs.

Available in 5 Days: 260,000 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

0.05 € *

Price list

Quantity

Price per unit*

5000 pcs.

0.0524 €

15000 pcs.

0.0464 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Crimp contact, 2329909-1, TE Connectivity

Power contact, Contact, 600 VAC, 600 VDC, Tin, 26-22 AWG wire size, 0.13-0.3 mm² wire size, Wire and Cable, Crimp, Power, Tab.

Technical specifications

	Version	tab
	AWG cross-section	AWG 26-22
	Insulation diameter	1.3-2.1 mm
	Contact connection	crimp connection
	Contact material	brass
	Contact surface Connection range	tin-plated
	Contact surface mating area	tin-plated
	Cable cross-section	0.13-0.3 mm²
