LV848251 | Schneider Electric
Basic switch, Push actuator, 4 pole, 1000 A, 1000 V, (W x H x D) 493 x 300 x 300 mm, Drawout, LV848251
Unit Price (€ / pc.)
3,799.8247 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3,799.82 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,799.8247 €

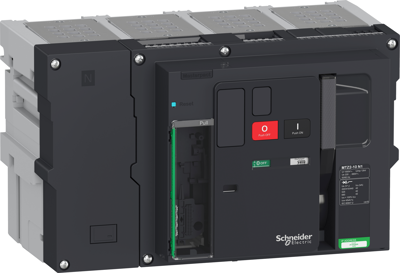

Circuit breaker, LV848251, Schneider Electric
Masterpact MTZ2 1000A N1 Icu=42kA/440V 4P basic circuit breaker withdrawable . Circuit breaker Masterpact MTZ2 10N1,1000A,4p withdrawable technology,without Micrologic. Series: Masterpact - Product name: Masterpact MTZ2 - Device short name: MTZ2 10 N1 - Product or component type: Circuit breaker -.
Technical specifications
| Actuator | Push actuator | |
| Width | 493 mm | |
| Permanent current | 1000 A | |
| Height | 300 mm | |
| Isolation voltage | 1000 V | |
| Assembly | Drawout | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 300 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
