1091946 | Phoenix Contact
Socket, RJ45, 8 pole, 8P8C, Cat 6A, solder connection, through hole, 1091946
Order No.: 63P4703
EAN: 4055626906355
MPN:
1091946
Unit Price (€ / pc.)
4.4268 € *
Available: 0 pcs.
Leadtime: On Request **

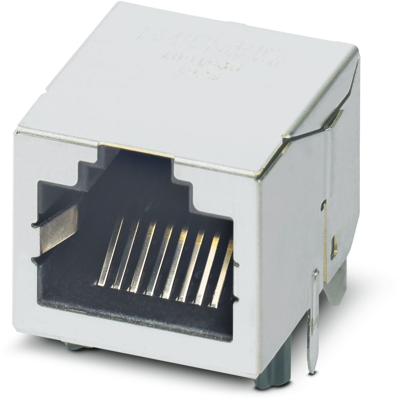

RJ45 PCB connector, 1091946, Phoenix Contact
RJ45 PCB connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, material: Metal, connection method: THR reflow/THT wave.
Features
- Ideal for demanding applications due to the high shock and vibration resistance as well as the extended temperature range
- 360° shielding ensures reliable transmission, even in industrial applications
- Housing shield springs enable an optimized EMC shielding concept
- Automated handling process thanks to reflow capability
- The extended temperature range from -40°C to +105°C enables use in demanding industrial applications
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Category | Cat 6A | |
| Assembly | through hole | |
| Pole image | 8P8C | |
| Pin number | 8 pole | |
| RJ-Version | RJ45 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
