231706 | PEPPERL+FUCHS
Proximity switch, built-in mounting M8, 1 Form A (N/O), 15 mA, Detection range 6 mm, 231706
Unit Price (€ / pc.)
177.0482 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

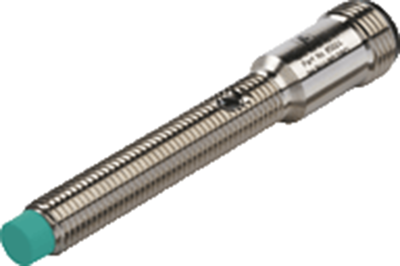

Inductive sensors, type Pepperl+Fuchs NEN6.
Increased sensing range: 6.0 mm. Output function: NO. Mounting mode: not flush. Switching output: PNP. Rated voltage: 10 to 30 VDC. Connection: 4-pole appliance connector. Voltage drop: max. 2.0 VDC. Open circuit current: max. 15 mA. Switching frequency: max. 750 Hz. Housing: nickel-plated brass. Degree of protection: IP 67. Operating temperatures: –25 to 85 °C. Certifications: UL.
Type: 231706, inductive sensor
Technical specifications

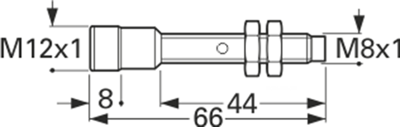

| Connection | M12-connector | |
| Version | Inductive sensor | |
| diameter | 8 mm | |
| Detection range | 6 mm | |
| Length | 66 mm | |
| Assembly | built-in mounting M8 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 15 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
